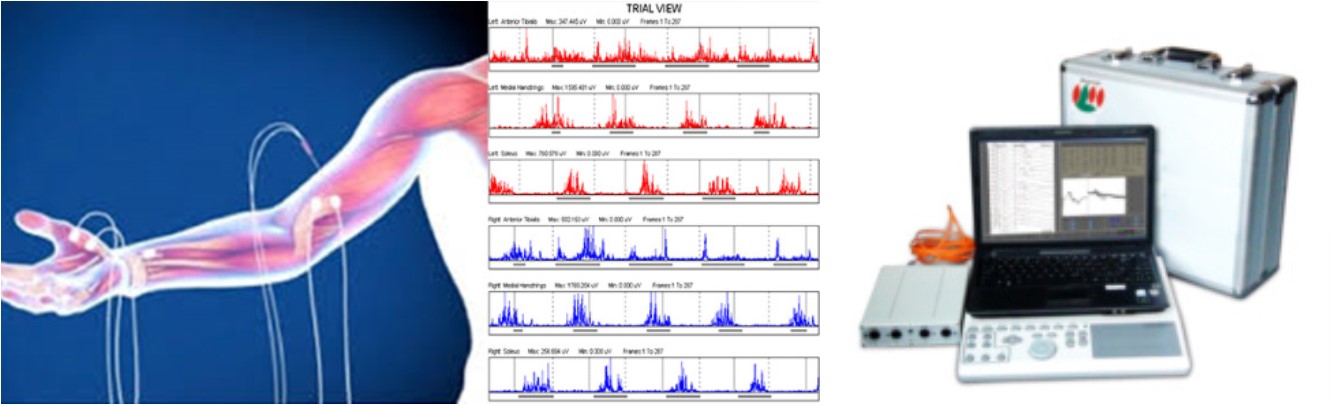

Neurocare EMG/EP (Portable) Systems

A compact portable EMG/EP system that performs EMG,NCV,EP examinations and connects to an external 2 or 4 channel amplifier and a control unit.
It comes in an ultra-smart professional suitcase that allows you the convenient portability to hospital wards, operating room, ICU and bedside examinations.

Features and Advantages

  • The amplifier and current stimulation are integrated into the main unit of EMG/EP system which makes the whole system compact and light-weight.
  • The Digital isolator shields away interference from power line & environment and makes it easy to collect data.
  • The interfaces of new EMG / EP System are few & simple, easy for operation & installation and has flexible configuration choices, for example Customer can choose to buy A&V Simulator for EP examination
  • Once the device is charged, it connects to a computer through an USB interface for testing or through an Isolation Transformer to the mains supply (optional extra).
  • The EMG/EP software can work with Win 7 System and in different display sizes and resolutions

Product Specifications

  • Amplifier
    • Channels: 2/4
    • Sensitivity: 0.05μV/div -20 mV/div
    • Amplitude-frequency characteristic: 1Hz~5kHz
    • Noise: =0.4μV (VP-P RMS)
    • Impedance: >1000MO
    • CMRR: =110dB
    • Gain Amplifier: 50 times ~ 50 million times
    • Max higher filters frequency: 50Hz
    • Min Lower filters frequency: 0.1Hz
    • A/D conversion rate: 24Bit
    • Sample Rate: 200 KHz
    • Stimulus frequency: 0.1 - 50 Hz
    • Analysis time: 1 - 1000ms
    • Splice time: 1-5000 times
  • Current Stimulator (Included in the Amplifier)
    • Channels: 2/4
    • Current intensity output range: 0 ~ 100mA, error = ± 10%
    • Stimulus modes: single-current stimulator, dual-current stimulator
    • Stimulus frequency: 0.1 Hz ~ 100Hz, error = ± 10%
    • Stimulus width: 50 - 1000μs
    • Pulse duration error: 0.05ms, 0.1ms, 0.5ms, 1ms, Error = ± 10%
    • Pulse mode: single pulse, double pulse, three pulses
  • A/V Stimulator (optional)
    • Sound (Configured with headphone)
      • Stimulus intensity: 30~120 dB
      • Stimulus frequency: 0.1~20H
      • Stimulation method: rare wave, dense wave, alternative wave
    • Pictures (Configured with Pattern reversal stimulator)
      • Pattern mode: checkerboard, vertical grid, bar grid
      • Image Size: 64*32, 32*24, 16*12, 8*6, 4*4
      • Vision: full vision, half-field (left), 1 / 4 view (I, II, III, IV quadrant)
      • Stimulation frequency: 1 ~ 20 times / sec
      • Free to edit, set the pattern or color pattern
    • Flash (Configured with goggles)
      • Stimulus frequency: 0.1 ~ 20Hz adjustable
  • Electromyography (EMG)
    • Motor Unit Potential (MUP)
    • Interference phase (IP)
    • Scanning EMG (QEMG)
  • EEvoked potential (EP)
    • Somatosensory Evoked Potential (SEP): USEP; LESEP; TSEP; SCEP
    • Acoustic evoked potential (AEP): BAEP, MAEP, LAEP, EoochG, 40HZ
    • Visual evoked potential (VEP): PRVEP, FVEP, ERG, EOG
  • Nerve Conductive Studies (NCV)
    • Motor NCV (MCV)
    • Sensory NCV (SCV)
    • Short segment conduction (SSCT)
    • Repetitive nerve stimulation (RNS)
    • F-wave
    • H-reflex
    • Blink Reflex (BR)
    • Sympathetic Skin Response (SSR)
  • Shows the Nerve / Muscle color map
  • Able to freely edit the nerve points/ muscle points
  • Nerve detection guide including the direction of the record point and the normal waveform
  • Able to cache waveforms and save more waveforms to one stimulation point
  • Able to adjust scan speed and sensitivity for all waveforms Synchronously
  • Able to collect signals of 4 channels Synchronously
  • Computer (Laptop)
    • Main Requirements
      • CPU with PII or above, memory is 128MB above and hard disk space is 1G or more
      • USB 2.0 interface
      • 17'' LCD display supporting 1280 x 1024 resolution in 16-bit color display mode, with Windows XP as operating system
      • Has 3C safety certification mark
      • Microsoft Office 2003 installed
      • East Asia language installed
    • Dimension & Weight: 510*445*207(mm); 6.05kg
  • Printer
    • HP L1908w monitor
    • HP LaserJet 1018 printer
    • Minimum system requirements:
      • Win 2000(XP, Server 2003 32/64 bit)
      • Intel 2, celeron
      • 1128MB RAM
      • 425MB HD
      • Microsoft internet explorer 5.01 SP2
      • CD-ROM
      • USb
    • Dimension & Weight: 349*195*344(mm); 6.15kg;
  • Loud Speaker
    • Input Sensitivity: 500mV
    • Frequency: 140Hz - 20 kHz
    • Voltage: 200V/50Hz
    • Weight: 0.95Kg
  • ISO13485: 2003; CE (93/42/EMG)
